M1 Abrams Track Dimensions A tank will need approximately 300 gallons every eight hours this will vary depending on mission terrain and weather A single tank takes 10 minutes to refuel Refueling and rearming of
The driving force behind the development of the M1 Abrams was crew survival and the tank s shape comes from composite armor developed towards this purpose Special armor is also used in the forward track skirts The Abrams is larger yet a smaller amount of armor has been added over the years the difference in armor weight between a M1 Abrams from 1980 and a M1A2 Abrams SEP v1 from 1999 is less than 3 tonnes while the Leopard 2A5 upgrade alone adds between 4 35 to 7 35 tonnes of armor
M1 Abrams Track Dimensions
M1 Abrams Track Dimensions
https://m1.daumcdn.net/cfile282/image/12125D2F4CF8FACB2092C5

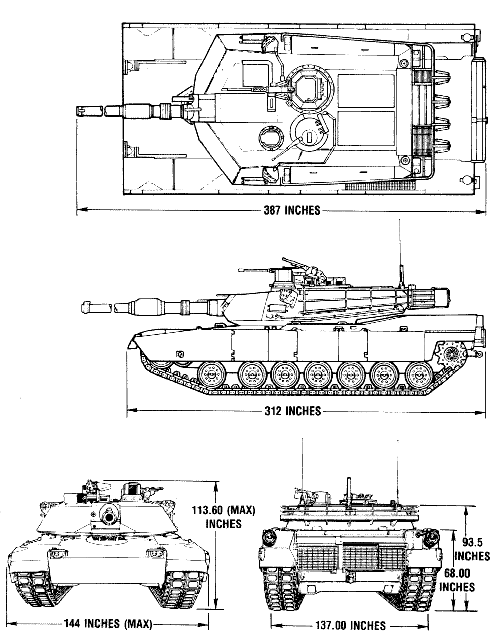

M1 Abrams Tank Drawing
http://id3486.securedata.net/fprado/armorsite/Abrams_Pics/M1A2-Size.gif
How To Change Giant Track Pads On The Massive US M1 Abrams Frontline
https://frontlinevideos.com/wp-content/uploads/2022/11/Fq9FhyLrjHEhd.jpg
The M1 Abrams eclipsed for the last thirty years all past MBTs to date including the M48 M60 series It represented a definitive change in US tank design since World War 2 and was engineered with the crew protection in mind but without sacrificing either the firepower or This tank is designated for attacking against vast armor forces on battlefield The advance variant of the M1 the M1A1 has presented significant improvements in its armament as well as improved suspension system
Table 1 presents the tank dimensions used for all MLC calculations in this study These dimensions have been used in previous MLC calculations for the Abrams tank and have been verified for use by the Product Manager Office that manages the tank Outside to Outside Track Width in 137 01 Track Length in 180 2 The Abrams mine clearing blade MCB weighs approximately 6 943 pounds 3 150 kg and can be mounted on an M1 tank without special preparation or modification Mounting requires lift capability and takes up to an hour so it must be mounted well in advance of the mission
