M24 Bolt Head Size Find the body diameter head thickness and across flats dimensions of metric hex bolts from m10 to m100 The m24 bolt has a body diameter of 23 67 mm and a head thickness of 14 56 mm
Dimensions of metric threads according ISO 724 Minimum ultimate tensile and proof loads for metric bolts with coarse or fine threads Recommended thightening torque metric bolts Metric Shop high quality Hex Bolts from ITA Fasteners at the reasonable price Available in a range of sizes from M2 to M42 and din 933 Get a quote for Hex Anchor Bolts Head Hex Bolts and all

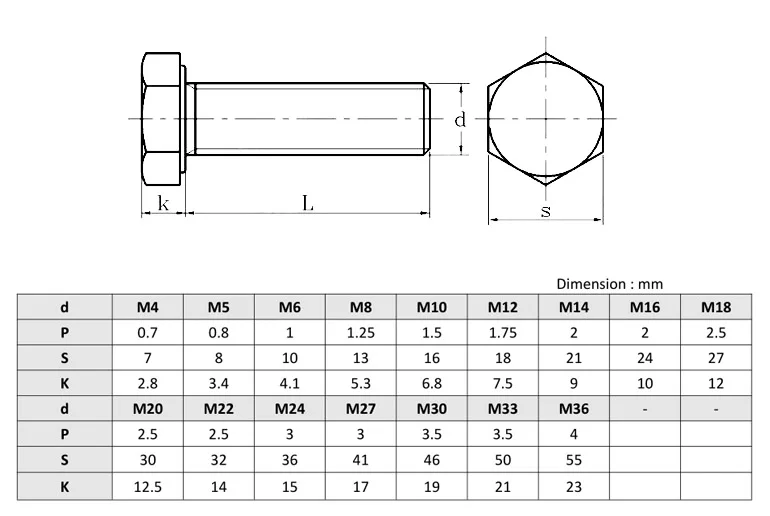

M24 Bolt Head Size
M24 Bolt Head Size
https://assets-global.website-files.com/5db81e2f6c50c20ceba8dc08/5f9394085fc0ca59822c01c8_4d21ee_e502765c647b479f9953e185176e0a9d_mv2.jpg

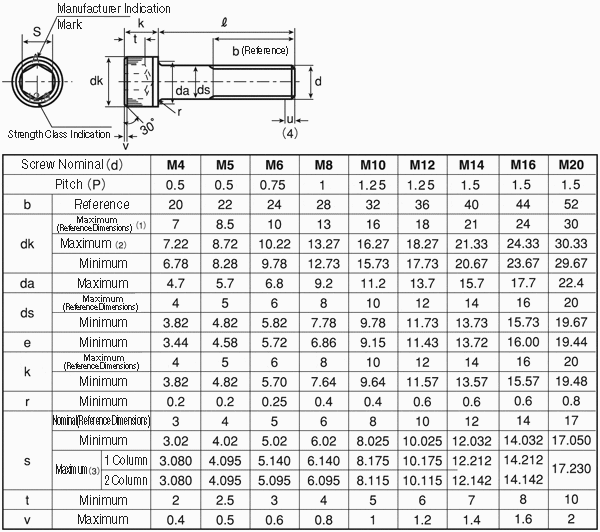

CSHH ST M14 15 Hex Socket Head Cap Screw Fine Pitch SUNCO MISUMI
https://in.misumi-ec.com/linked/material/mech/SA11/FIGURE/GIF_221000551309_1.gif

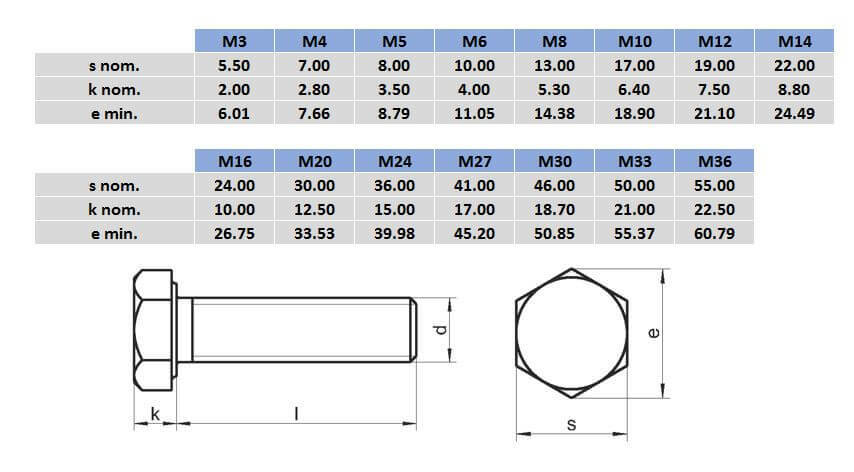

M22 X 100 316 Stainless Steel Hex Set Bolt Box Of 10
