How To Test A Stator With A Voltmeter So here is how to test your stator First disconnect the stator connector on the left side of the bike There are three wires With an AC voltmeter measure the voltage across each combination of the three wires pins 1 2 2 3 and 3 1
To test a stator you use a multimeter to either run a static test on the resistance of the wires or a dynamic test on the AC voltage reading from the wires A static test is run while the engine is switched off while a dynamic test involves Another way to test a DC stator is with a voltmeter which will tell you if there is any voltage drop across the stator windings If there is a voltage drop this could indicate a problem with the stator winding insulation
How To Test A Stator With A Voltmeter
How To Test A Stator With A Voltmeter
https://i.ytimg.com/vi/Fs0DJnHK2Y8/maxresdefault.jpg

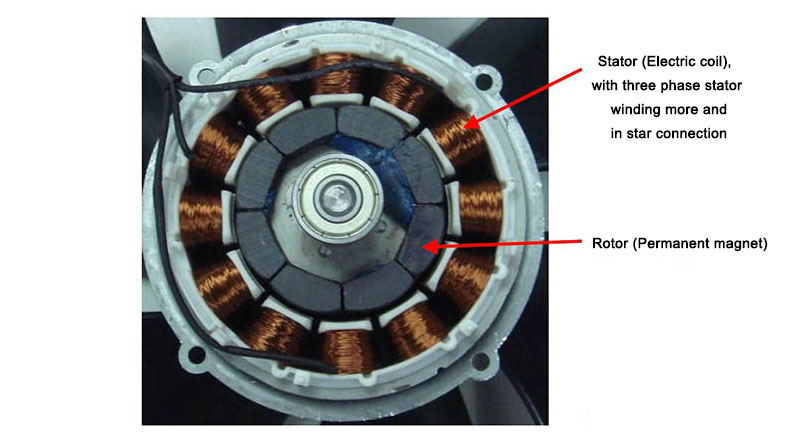

How To Wind A Brushless Motor Stator Brushless
https://www.brushless.com/images/uploaded/brushless-motor-stator.jpeg
HOW TO TEST A STATOR WHAT IS A STATOR step By Step GY6 YouTube
https://i.ytimg.com/vi/VoXYzQ61tRM/maxresdefault.jpg
In this video I show you how to complete voltage checks and continuity checks on both the stator and the regulator rectifier using a multimeter I also explain why we run these tests and how To test a generator stator with a multimeter set the multimeter to resistance mode and check for continuity Ensure readings are within specified limits Testing a generator stator with a multimeter is crucial for maintaining
For dynamic testing connect the multimeter set to AC voltage to stator phases with engine off no reading and on 20 volts Voltage should increase proportionately with engine revs Take readings across all phase You can use this multimeter to test the stator of an electric motor by connecting it between the two phases If the multimeter detects any voltage while you are touching both wires your motor s windings or magnets are faulty and
