What Is An Acceptable Insulation Resistance Reading So if we like to check a machine rated voltage is 33 kV the minimum tolerated insulation resistance will be R 1 33 34 M and for a motor with 440 voltage rating the IR value will be
The insulation resistance test is an electrical test which uses a certain type and level of voltage 500V d c for low voltage installations i e 230V to measure insulation resistance in Ohm s The measured resistance indicates the What is an Insulation Resistance IR test Insulation resistance often known as IR is a measurement that determines how good or bad your insulation is This test can assist you
What Is An Acceptable Insulation Resistance Reading
What Is An Acceptable Insulation Resistance Reading
https://i.ytimg.com/vi/Xe9vD_a3qEE/maxresdefault.jpg
PROPER PROCESS OF INSULATION RESISTANCE TEST OF CIRCUIT BREAKER HOW TO
https://i.ytimg.com/vi/kUJ8NW5YPLc/maxresdefault.jpg
18TH EDITION AMENDMENT 2 CHANGES TO INSULATION RESISTANCE TESTING Kewtech
https://www.kewtechcorp.com/media/uploads/2022/08/KT66DL-insulation-test-image-1-630x560.jpg
An insulation resistance test also known as a megger test or a dielectric strength test measures the resistance of electrical insulation to the flow of current It determines whether the insulation is effectively protecting conductors cables For good insulation the resistance usually reads in the megohm range The Megger insulation tester is essentially a high range resistance meter ohmmeter with a built in direct current
The acceptable insulation resistance as being 1M this is for a single circuit or a complete installation Guidance note 3 recommends that any circuit giving a value of 2M or less must be investigated this is because a value as low as 2M Do not measure insulation resistance when humidity is more than 70 Good Insulation Megger reading increases first then remain constant Bad Insulation Megger reading increases first and then decreases Expected
More picture related to What Is An Acceptable Insulation Resistance Reading
What Is Megger And How To Check Electrical Cable By Using Megger
https://i.ytimg.com/vi/wdYEiirkCws/maxresdefault.jpg

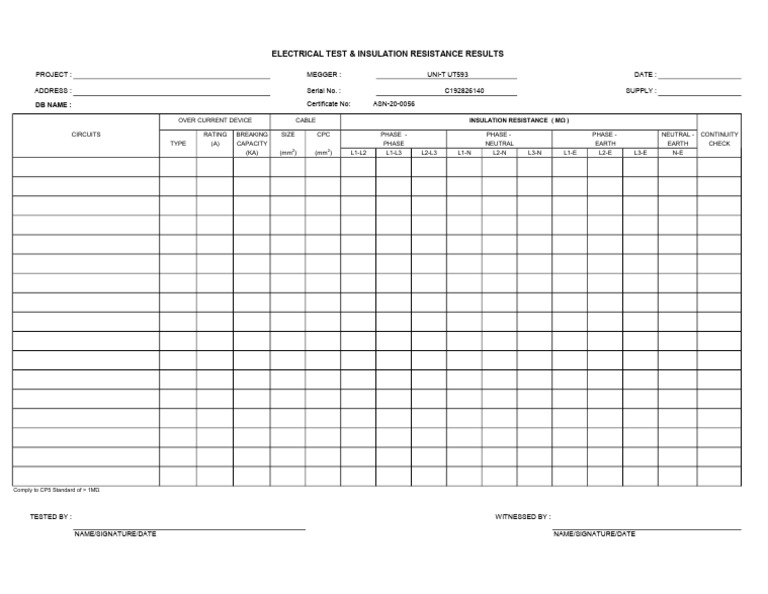

Insulation Resistance Test Form PDF
https://imgv2-1-f.scribdassets.com/img/document/675904811/original/f48201f8a1/1702065319?v=1
Insulation Resistance Test In An Electrical System Electrician
https://electricianphilippines.com/wp-content/uploads/2023/07/insulation-resistance-testing.webp
Effective insulation is necessary to provide basic protection and to prevent short circuits and earth faults An insulator should have high insulation resistance typically many megohms M Insulation resistance IR testing is a critical procedure used to evaluate the effectiveness of insulation in preventing electrical leakage This test involves applying a high
A regular program of testing insulation resistance is strongly recommended to prevent electrical shocks assure safety of personnel and to reduce or eliminate down time Test voltage 500v for 230v or 400v installations or circuits with a minimum insulation resistance of 1 M ohm 1000 000 ohms A combined resistance of 2 M ohm or less
Troubleshooting With Insulation Resistance Test
https://s2.studylib.net/store/data/018034038_1-be9d8436b0decf0f6e9fa2f65d033a94-768x994.png
China Digital Insulation Resistance Tester Suppliers Manufacturers
https://i.trade-cloud.com.cn/upload/6840/digital-insulation-resistance-tester_251851.jpg
https://www.electricalvolt.com › calculate-minimum...
So if we like to check a machine rated voltage is 33 kV the minimum tolerated insulation resistance will be R 1 33 34 M and for a motor with 440 voltage rating the IR value will be
https://www.sparkyfacts.co.uk › Inspection-…
The insulation resistance test is an electrical test which uses a certain type and level of voltage 500V d c for low voltage installations i e 230V to measure insulation resistance in Ohm s The measured resistance indicates the
Insulation Assessment Using Non Invasive Techniques 56 OFF
Troubleshooting With Insulation Resistance Test
Megger Value Chart Clearance Store Gisli mx
What Is An Insulation Resistance Test Working Types Applications
Procedure Of Insulation Resistance Test In Home ETechnoG
Como Testar A Resist ncia Ao Isolamento Flu do Flonchi
Como Testar A Resist ncia Ao Isolamento Flu do Flonchi
Measurement Of Insulation Resistance IR Part 2
What Is Insulation Resistance Testing Hioki
Fault Finding Testing For Insulation Resistance Low Reading Insulation
What Is An Acceptable Insulation Resistance Reading - Do not measure insulation resistance when humidity is more than 70 Good Insulation Megger reading increases first then remain constant Bad Insulation Megger reading increases first and then decreases Expected
